Brand Name : OiD
Model Number : INR21700N40A40
Certification : BIS, KC, BSMI, CB, UL, CCC
Place of Origin : China
MOQ : 100pcs
Price : $0.5 ~ $100.0 / pcs
Delivery Time : 3 ~ 7 days for storage
Payment Terms : TT,L/C,Western Union
Name : 40A Battery
ODM : Free custom design for packs
Battery Type : 4000mAh Rechargeable
Cathode : NCM or NMC
Higher Energy Density : LongerrRuntime for 20-30% more energy than 18650 cells
Superior Power Output : Higher discharge rates (up to 40A)
Cost-Effective & Space-Saving : Reduce pack weight and cost by requiring fewer cells in series and parallel
Future-Proof : Ensure compatibility with next-gen tech for high-demand applications
INR21700N40A40 3.7V 4000mAh 40A 300 Cycles 21700 Battery
Product Name
INR21700-4000-3.7 21700 Battery
Advantages
Specifications
Parameter | Value |
Model | INR21700N40A40 |
Nominal Voltage | 3.7V |
Nominal Capacity | 4000mAh |
Charging Voltage | 4.20V ± 0.05V |
Discharge Cut-off Voltage | 2.50V |
Max Charging Current | 6.0A |
Max Continuous Discharge Current | 40A |
Weight | ≤68.0g |
Dimensions | Diameter: ≤21.30mm, Height: ≤70.40mm |
Internal Resistance | ≤15mΩ |
Energy Density | Volume: 590Wh/L, Weight: 218Wh/kg |
Terminal Type | Standard 21700 flat top or button top (customizable) |
Cycle Life
Condition | Cycles | Capacity Retention |
4A Charge / 20A Discharge | 300 | ≥60% |
4A Charge / 30A Discharge | 200 | ≥60% |
Discharge Curve
Operating Temperature Range
Condition | Temperature Range |
Charging | 0°C to 50°C |
Discharging | -20°C to 75°C |
Storage | -20°C to 45°C (recommended for long-term storage) |
Certifications
Key Features
Applications
Usage Warnings & Precautions
Storage Guidelines
Warranty & Disclaimer
![]() |

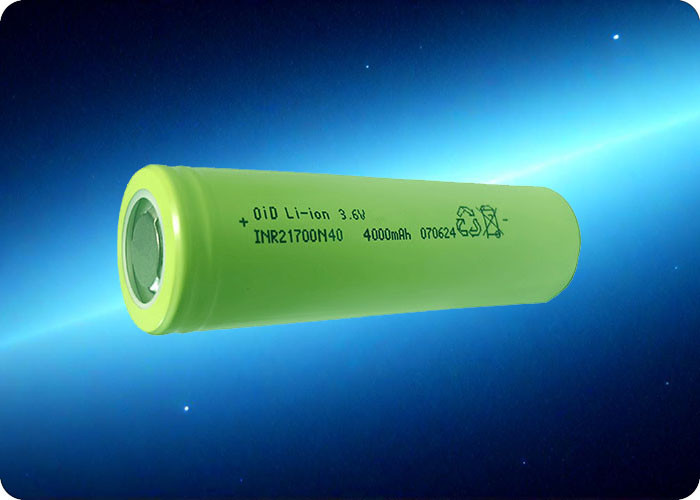

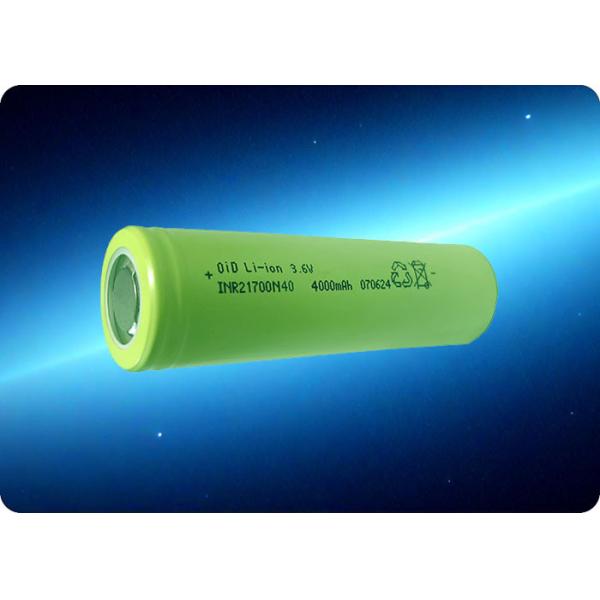

21700 4000mAh 40A High Rate Rechargeable Battery with 300 Cycles Images |
